District Energy System

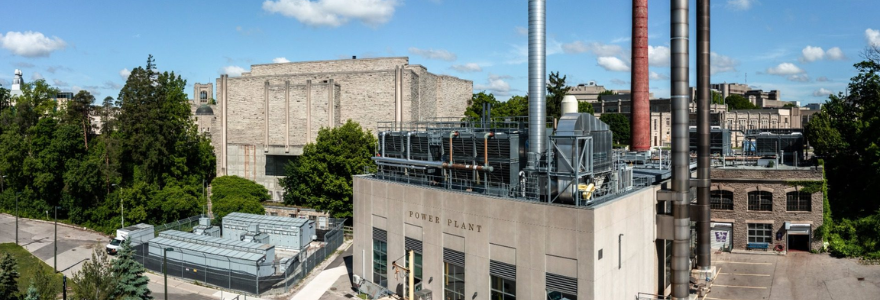

Aerial view of the Power Plant

Western has district steam and chilled water networks, which together make up the district energy system on campus. The district energy system at Western includes two chilled water plants, a steam plant and infrastructure like pumps and steam tunnels to move the water and steam around campus.

The steam network operates year-round and is used for heating, humidification and research applications. Historically, the chilled water network was used for cooling from late April to early October but in 2019 this network was converted into a year-round energy loop and waste heat from buildings can be recovered and injected into the energy loop and then shared between buildings on campus. This in turn reduces the amount of steam required to heat campus buildings.

Waste heat at Western University is primarily rcovered from two sources:

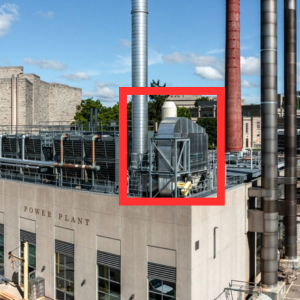

Boiler flue gas recovery

Boiler No.1 is equipped with a flue gas heat recovery unit that captures residual heat from the hot boiler exhaust gases. This heat is transferred to clean water using a condensing heat exchanger, raising the water temperature to approximately 40–70°C.

Heat recovery chillers in campus buildings

Some buildings contain heat recovery chillers that provide simultaneous cooling and heating by recovering heat from the cooling process. Instead of discarding this heat as waste, the heat is used in domestic hot water or reheat networks. If there is any remaining heat, the system transfers it into the energy loop for reuse in other parts of campus.

After heat is recovered into Western’s campus-wide energy loop, it can be reused in buildings that require hot water and space heating. The energy loop enables the redistribution of thermal energy from buildings with excess heat to those with heating demands, improving overall system efficiency.

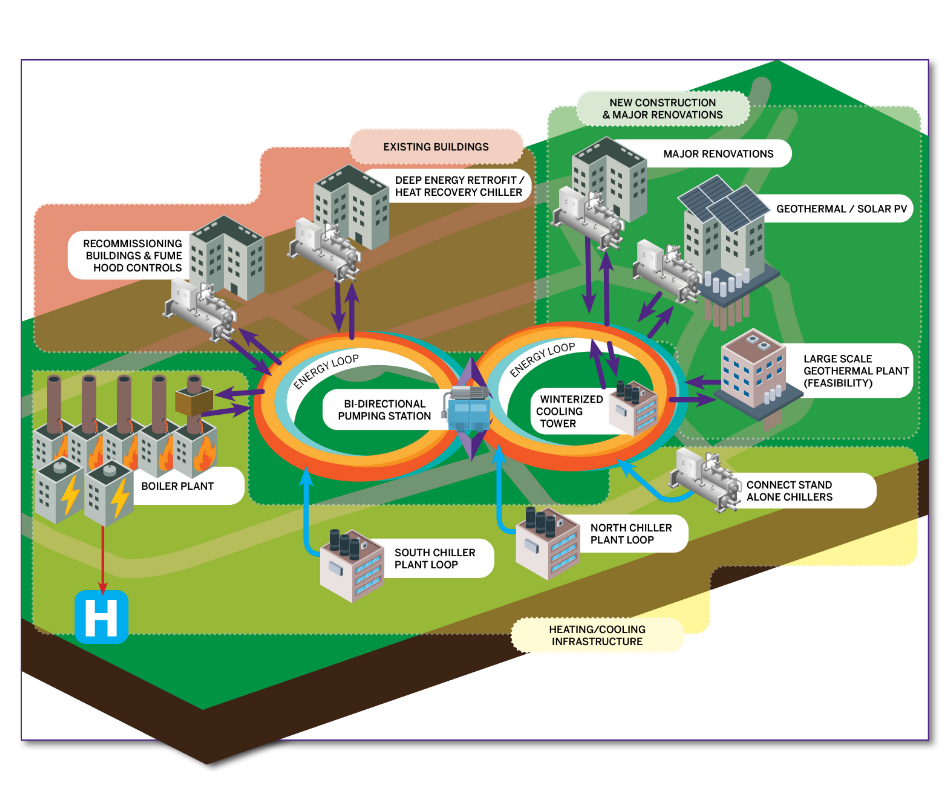

Energy LoopEnergy Loop graphic

Electric Boilers

The Power Plant is one of Western's oldest buildings at over 100 years old. The Power Plant uses natural gas boilers to generate steam for space heating, hot water, humidification and sterilization across main campus and the University Hospital. It also produces chilled water for cooling.

One of the main functions of the natural gas boilers is to heat our campus and these boilers are a major source of Western’s Scope 1 emissions.

Western has received $4.75 million from Environment and Climate Change Canada, towards installing electric boiler capacity that will replace aging natural gas boiler capacity. The two new electric boilers will produce about 40% of the university's steam and reduce overall campus emissions by 20-30%. This project is a major initiative that will help towards Western achieving its 2030 greenhouse gas reduction targets. Learn more about the funding announcement and electric boiler in Western News.
